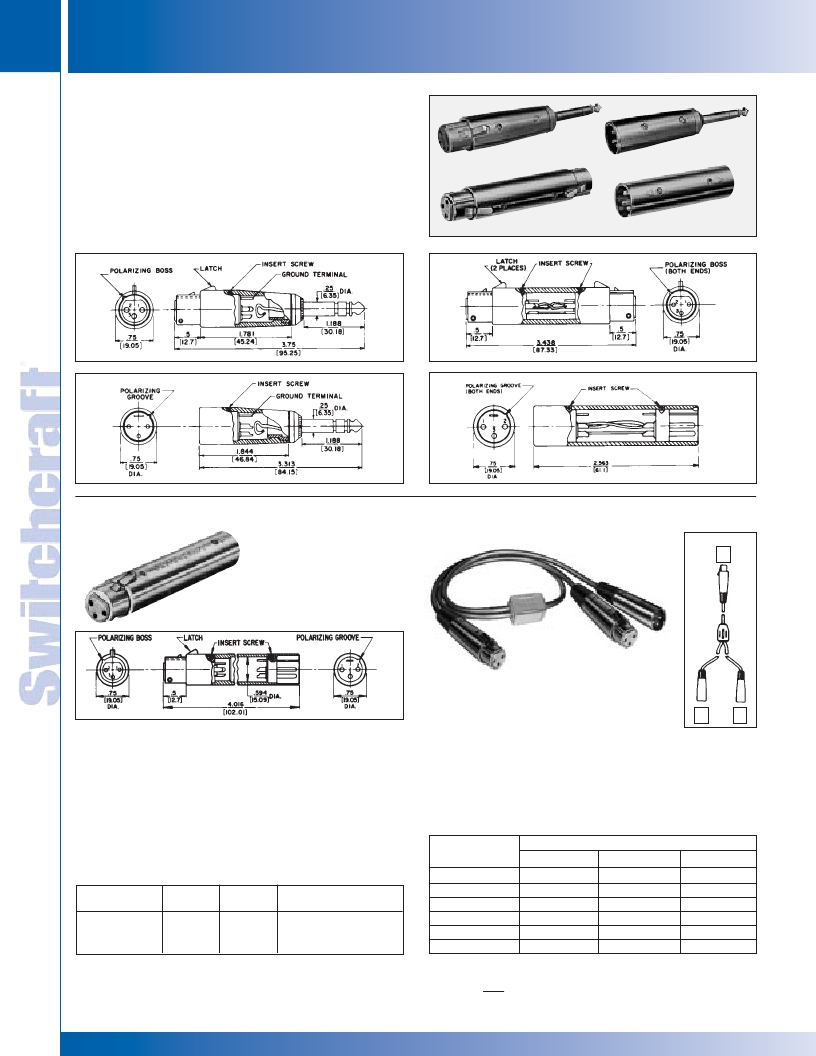

Q-G ? AUDIO CONNECTOR-ADAPTERS
386A: Three-contact female audio connector (Switchcraft ? A3F)
to standard .250" (6.35 mm) diameter 3-conductor phone plug.
387A: Three-pin male audio connector (Switchcraft ? A3M) to
standard .250" (6.35 mm) diameter 3-conductor phone plug.
389: Three-contact female audio connector (Switchcraft ? A3F)
at both ends. Pre-wired contacts: 1 to 1, 2 to 2, 3 to 3.
390: Three-pin male audio connector (Switchcraft ? A3M)
at both ends. Prewired pins: 1 to 1, 2 to 2, 3 to 3.
386A
389
387A
390
S*FM AUDIO CONNECTOR-ADAPTER AUDIO “Y” ADAPTERS
A
C
B
Male-female connector conversion has male Q-G ? insert at one
end and corresponding female Q-G ? insert at the other. Designed
to accept internally connected transformer, attenuator, or other
circuitry inline with microphone input. Includes 1.50" (38.1 mm)
long x .594" (15.08 mm) diameter of usable internal volume.
Series 391Q Y-Adapters can combine or split typical audio
signals using a combination of Switchcraft Q-G ? A3F and A3M
cord plugs. Outputs of two microphones can conveniently be
connected in parallel and connected to a single input using a
391Q23 Y-Adapter. Cabling is 2-conductor shielded, 2-foot long
gray jacket with molded Y-junction at center point. Mates with
Switchcraft Q-G ? and QGP ? connectors.
Q-G ? Cord Plug Part Numbers
Part Number
? 391Q13
Plug A
A3F
Plug B
A3M
Plug C
A3M
Female
Male
Insert
? 391Q23
A3F
A3M
A3F
Part Number
? S3FM
? S4FM
? S5FM
Insert
QG3F
QG4F
QG5F
Insert
QG3M
QG4M
QG5M
Pins/Contacts
3
4
5
? 391Q33
? 391Q43
? 391Q53
? 391Q63
A3F
A3M
A3M
A3M
A3F
A3F
A3F
A3M
A3F
A3F
A3M
A3M
? Available on special order only; contact Switchcraft for price and delivery.
Note: “Y” adapters may use either series A(*) or AA(*) plugs.
? Available on special order only; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
